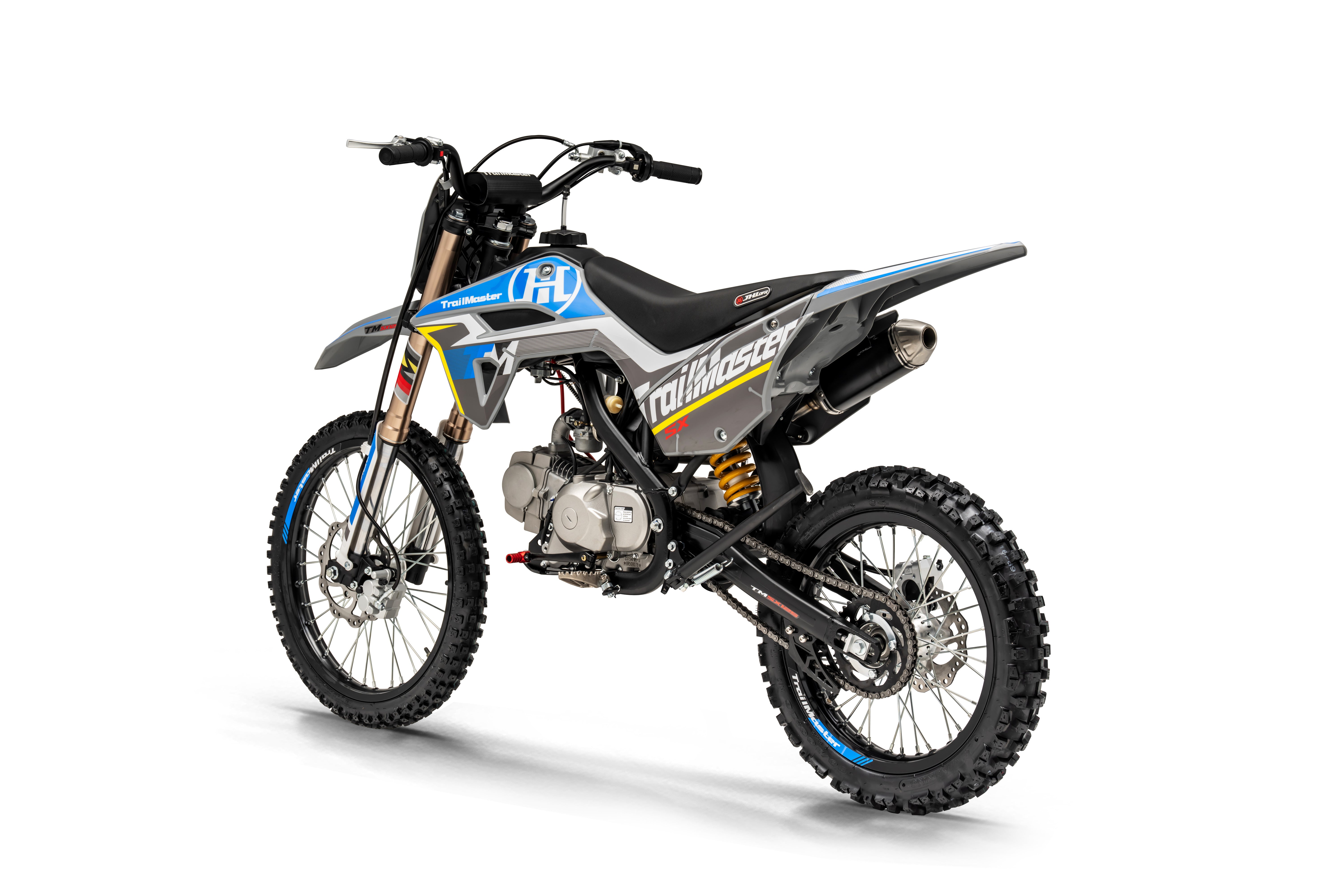

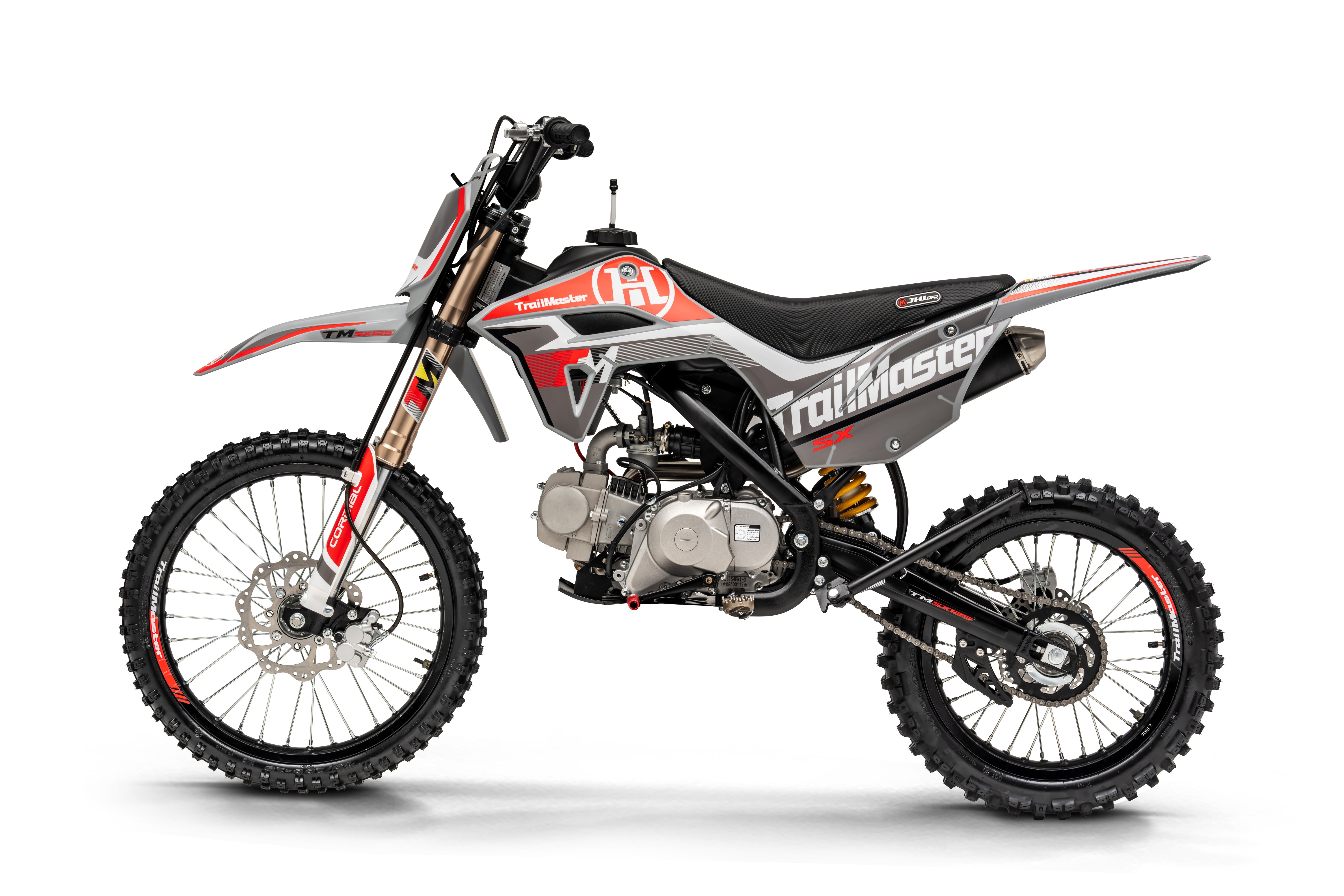

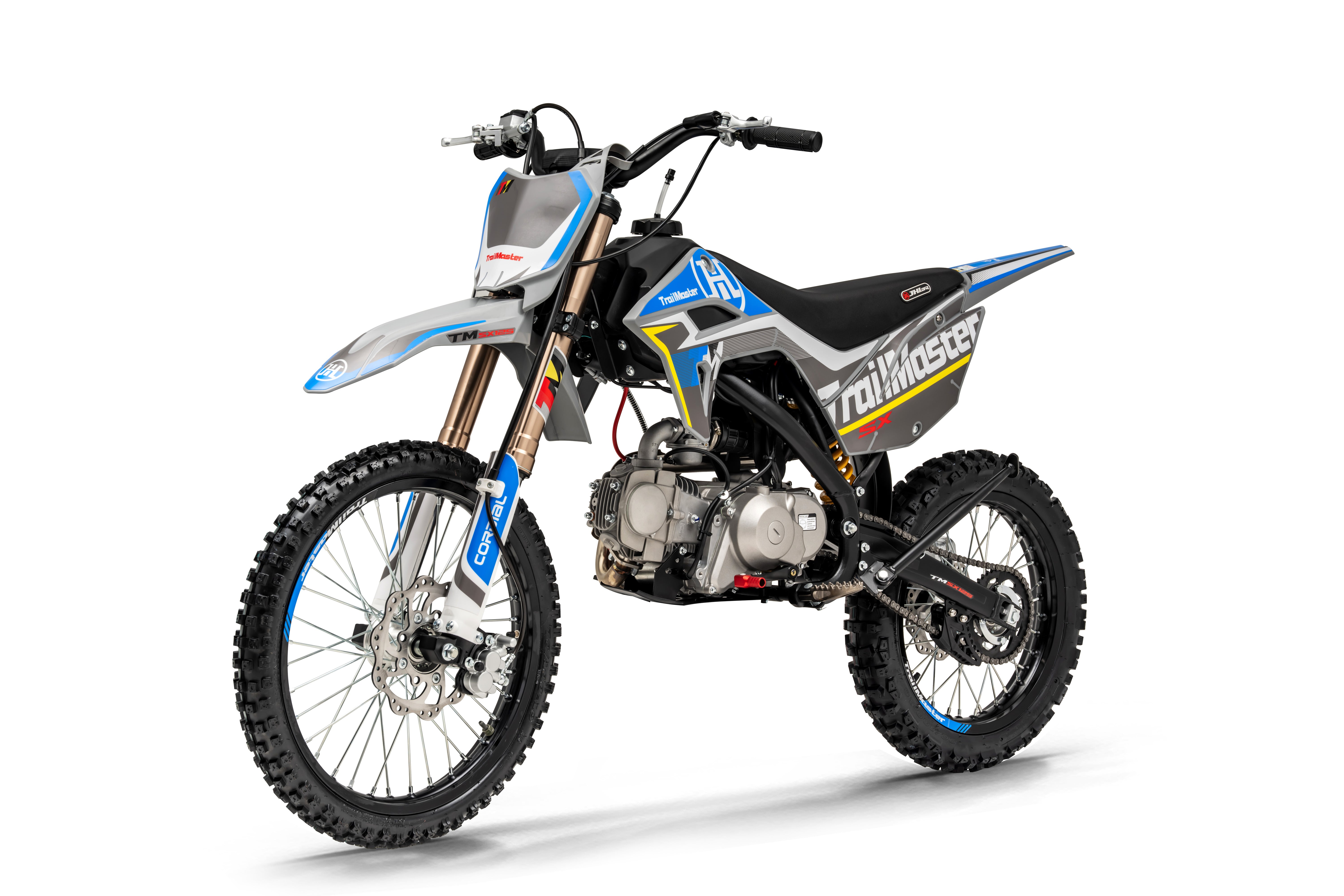

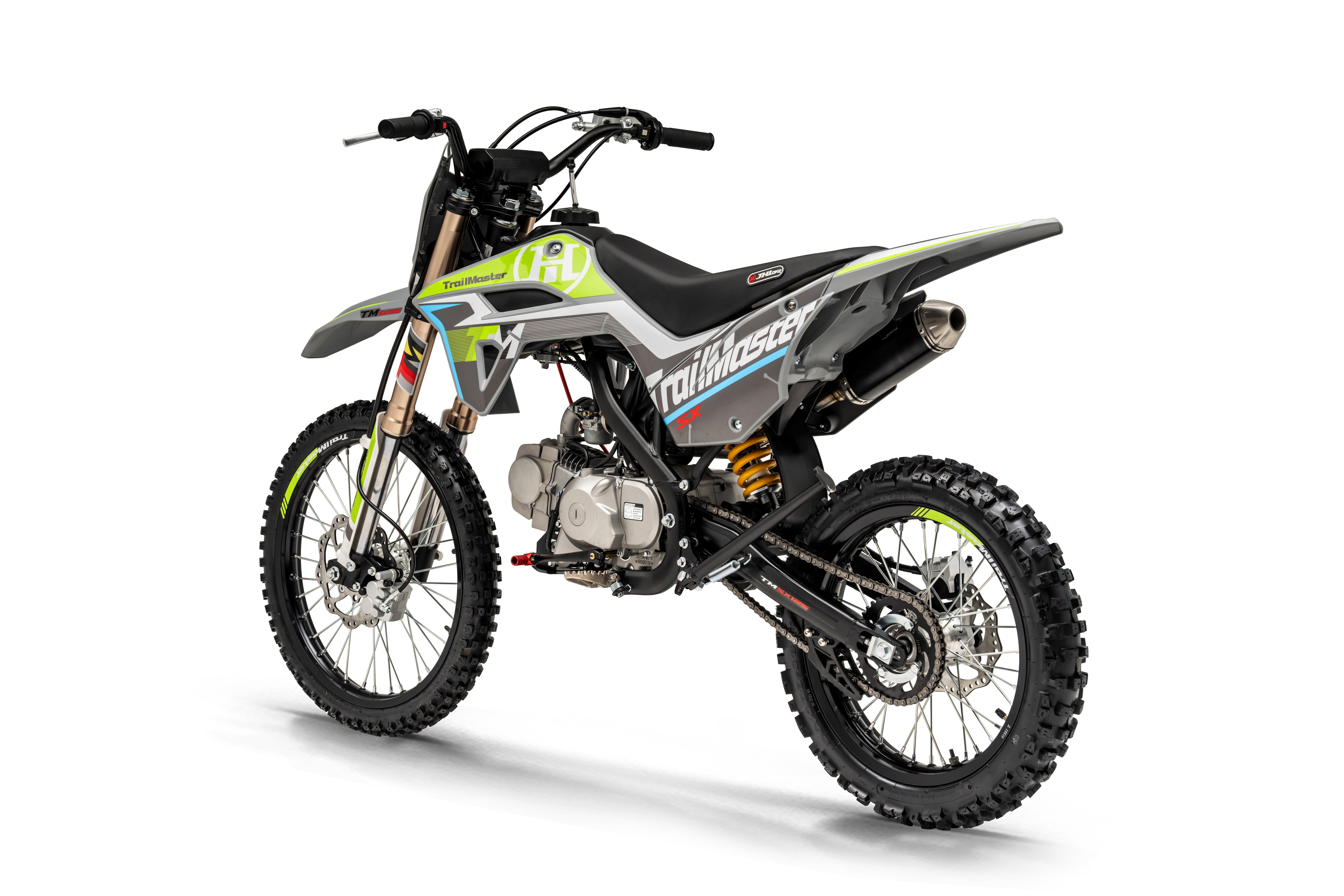

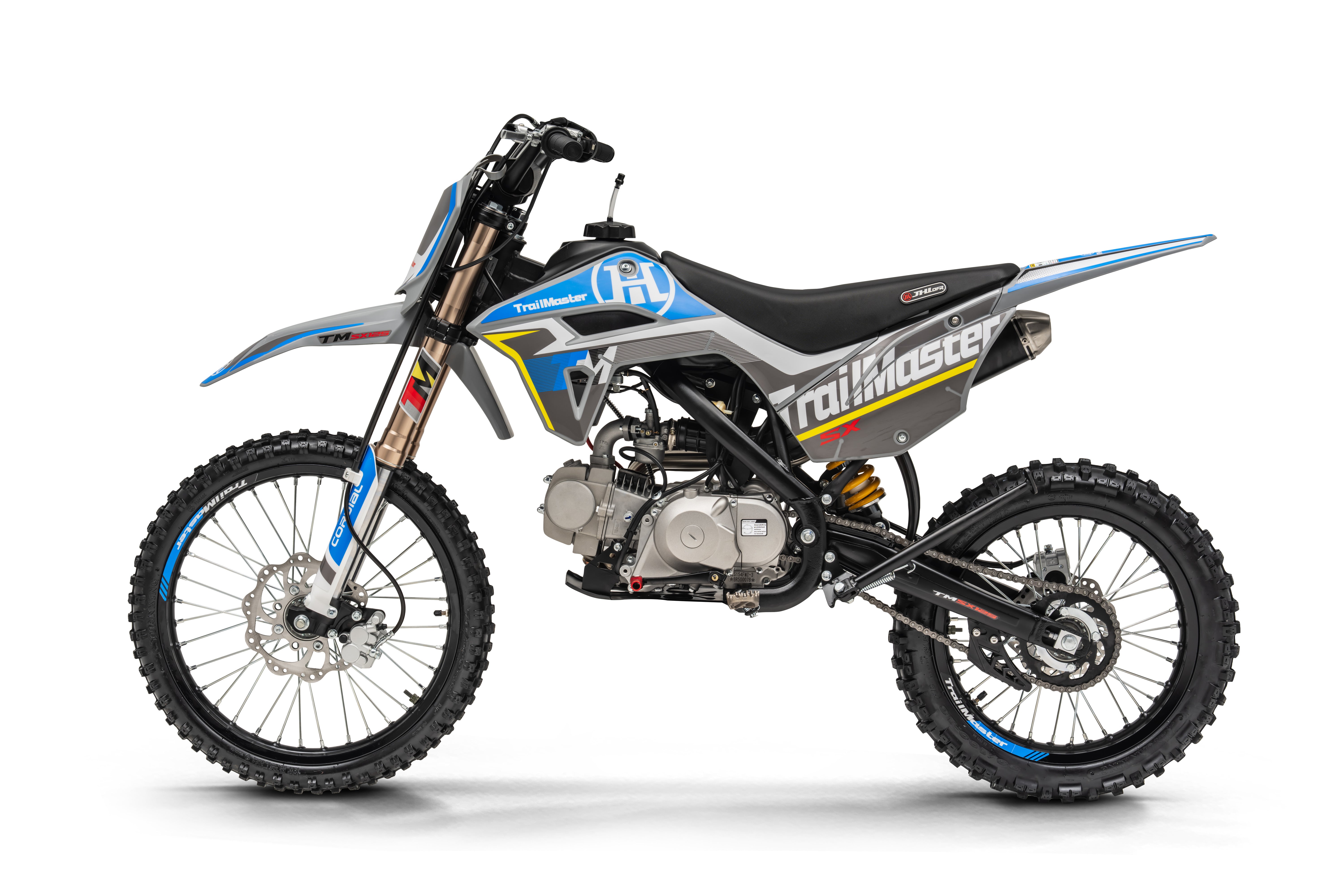

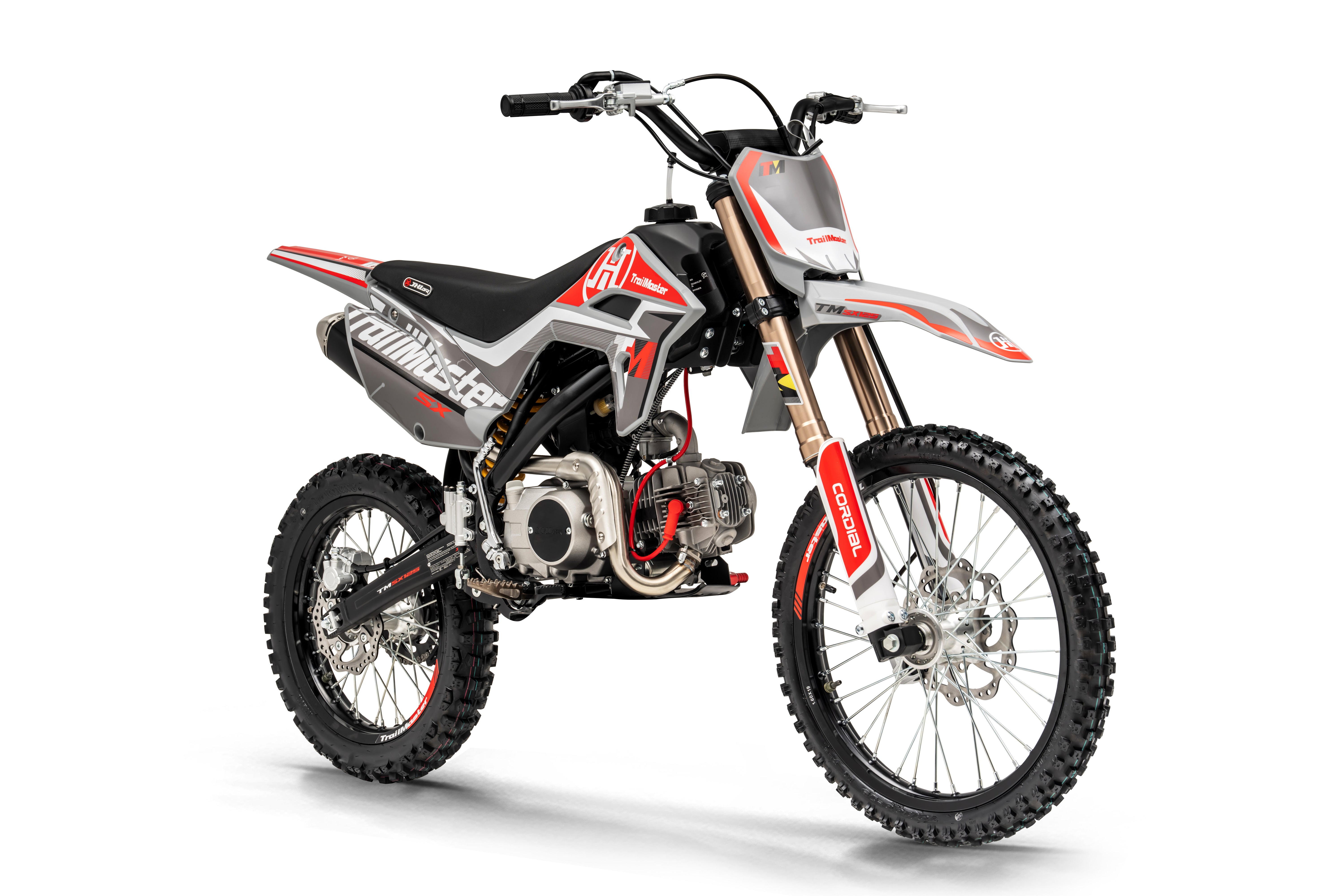

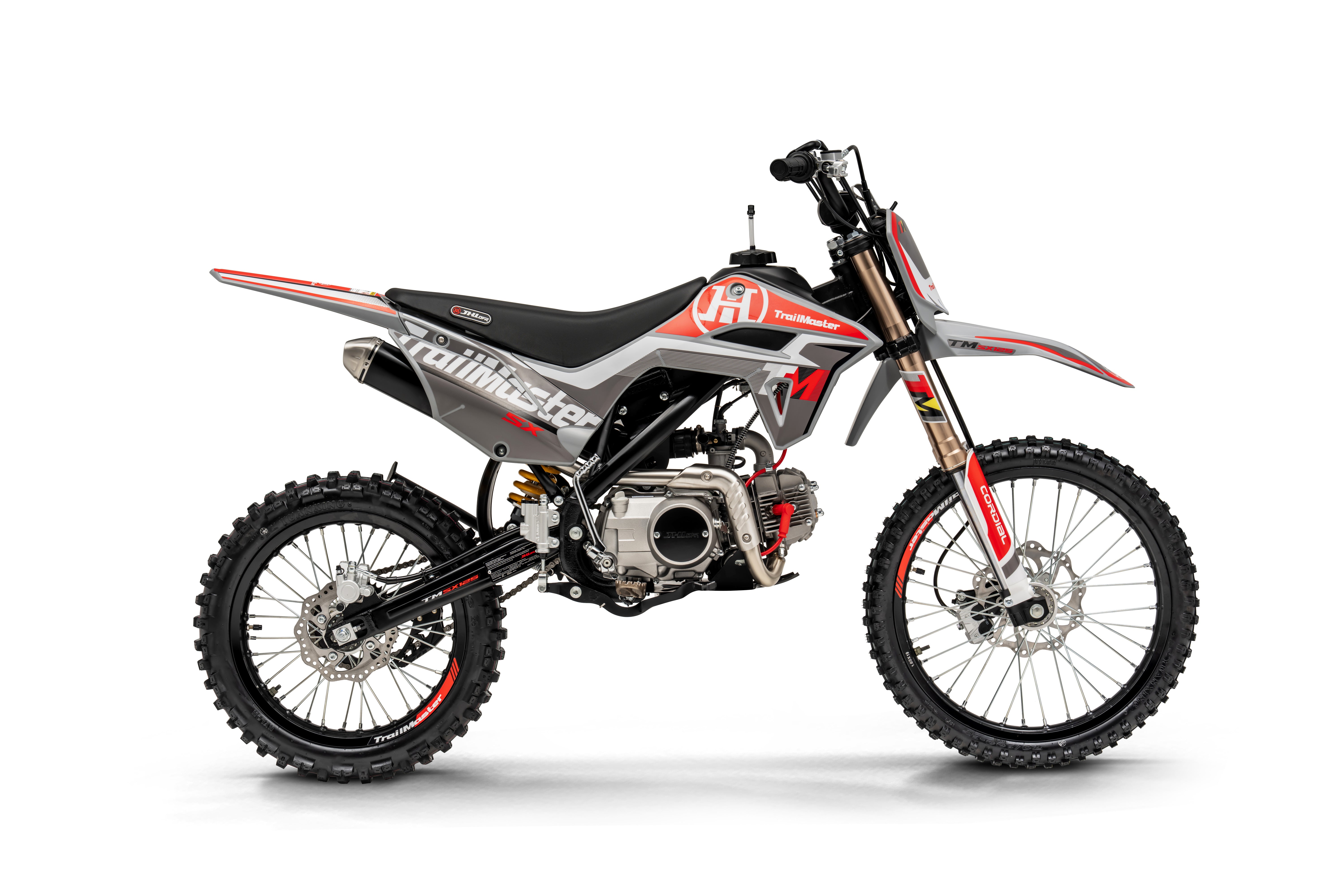

TrailMaster SX125 Pro-Series Dirt Bike
The TrailMaster SX125, in cooperation with JHL Offroad, introduces a premium PRO-Series mid-sized dirt bike. Featuring both a kick start and an electric start, the SX125 is powered by a high-performance and extremely reliable Zhongshen 123cc 4-stroke engine delivering 8.4 hp. The bike has a seat height of 32.7” and a slim weight of 189 lbs, providing the perfect balance of power and handling.

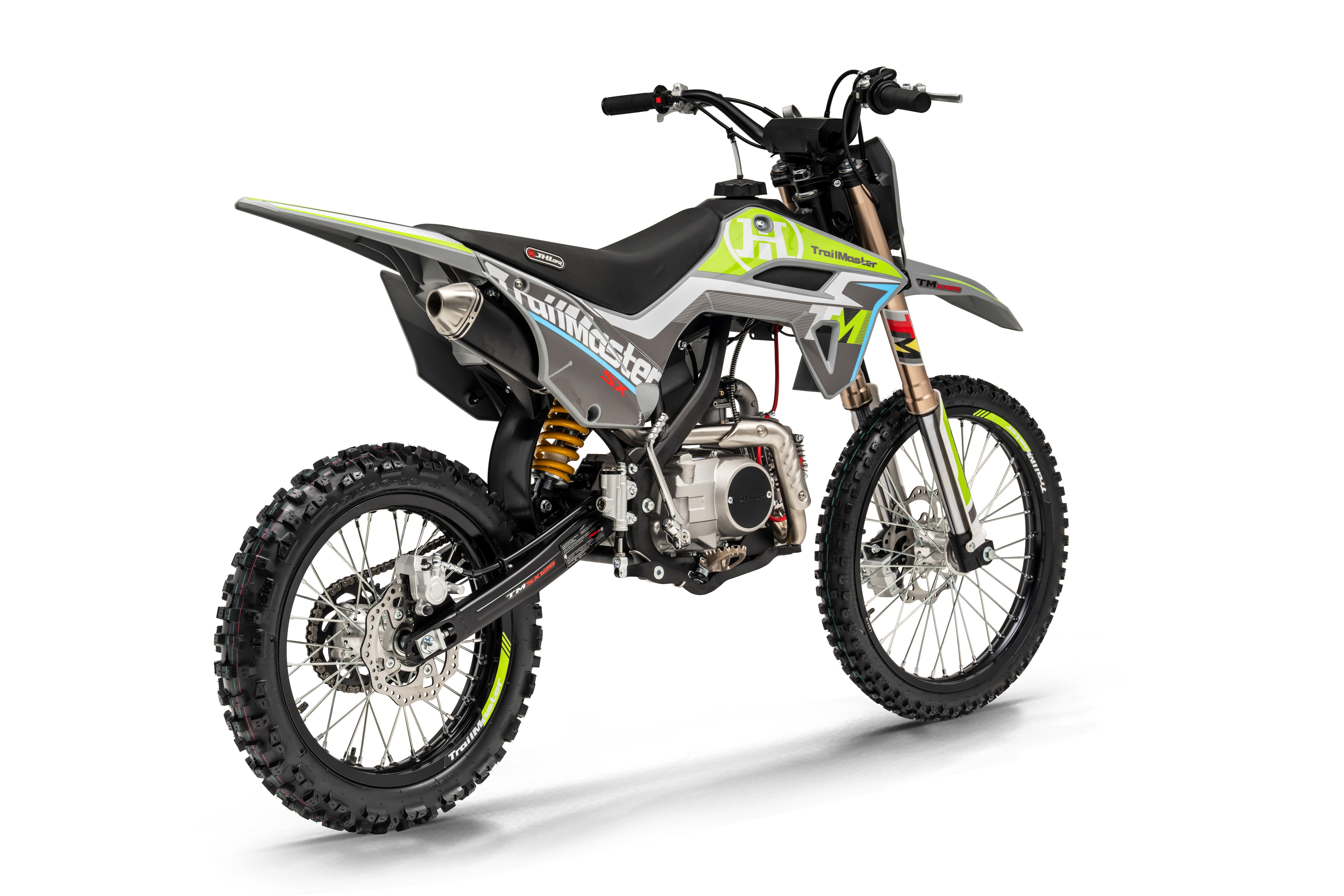

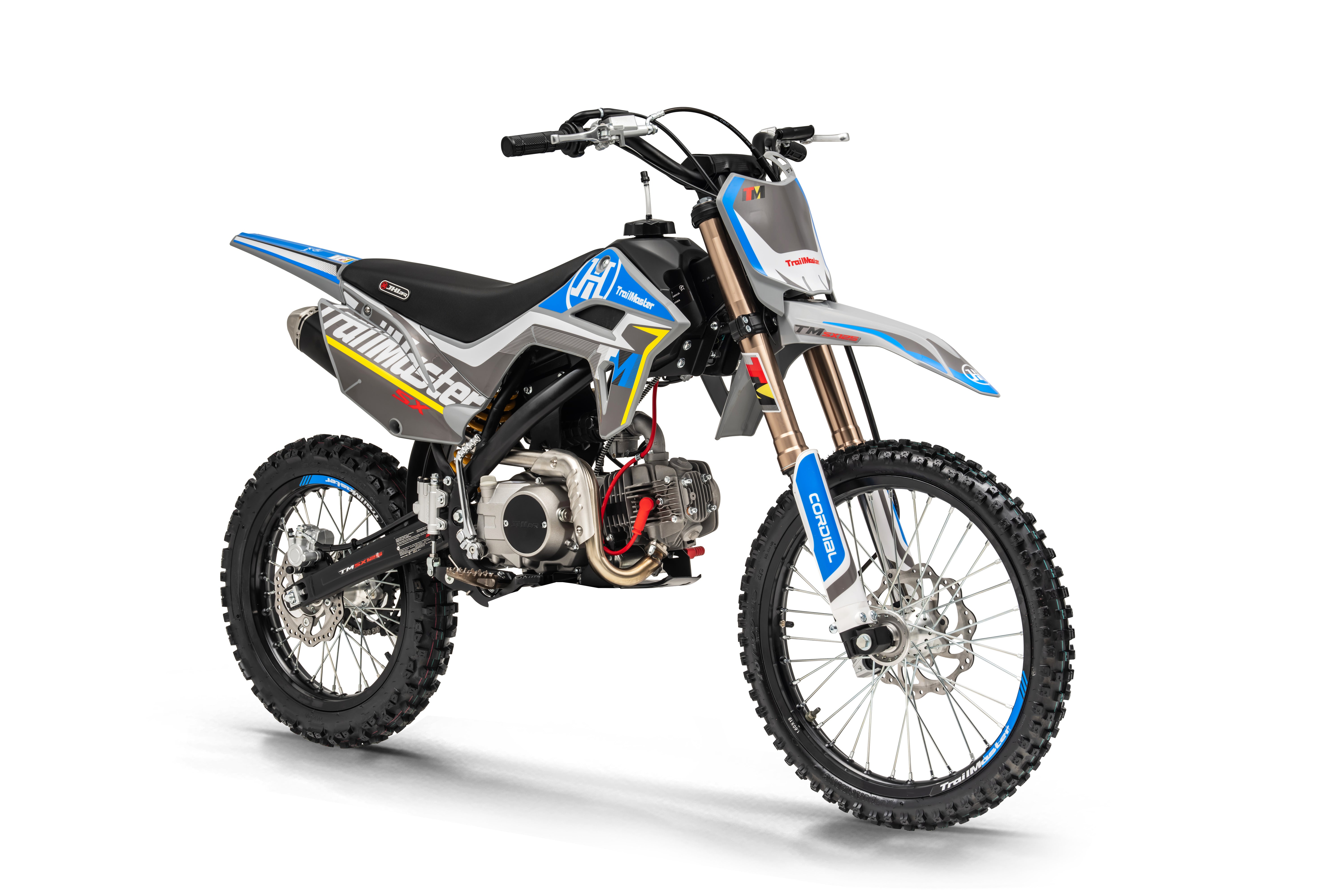

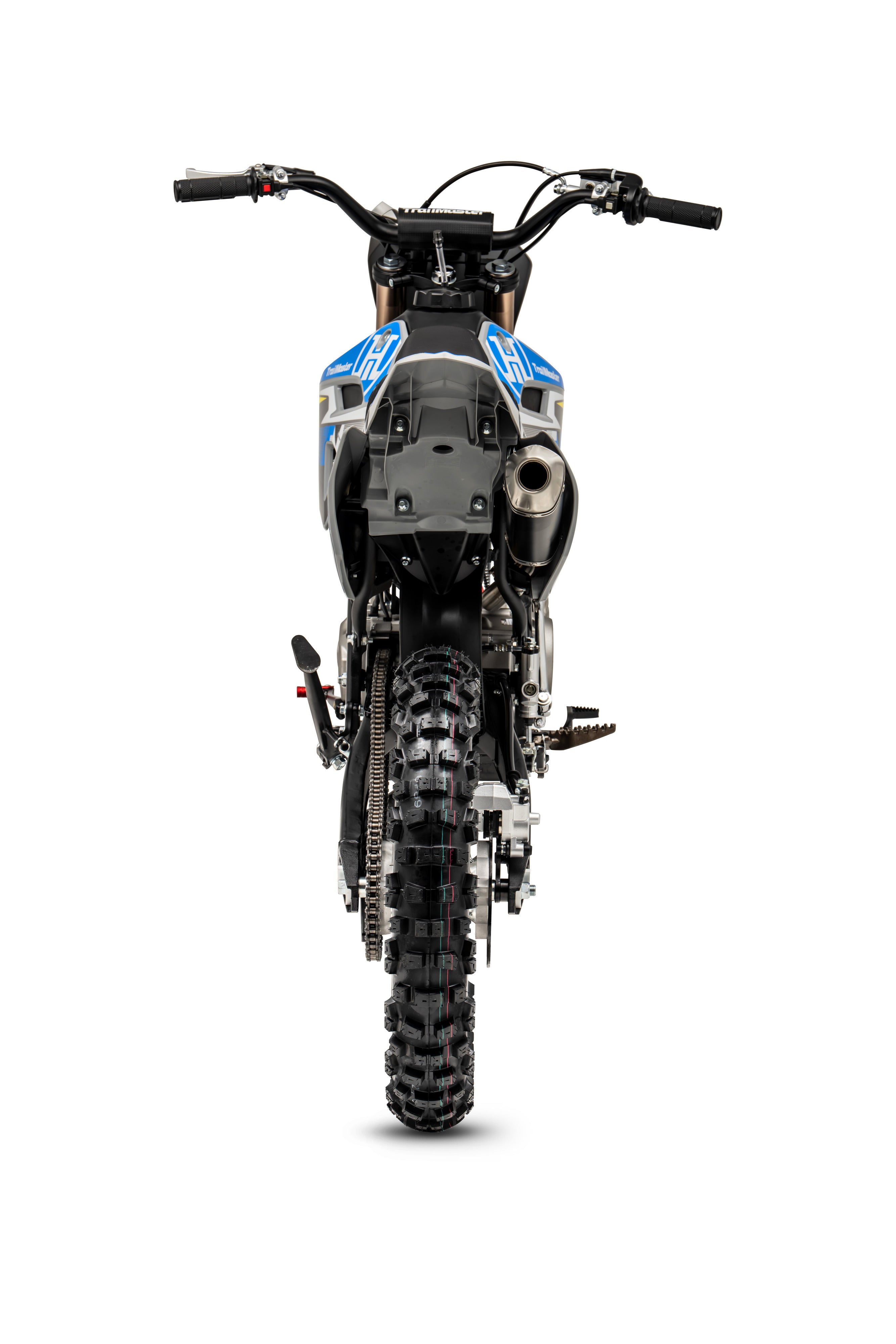

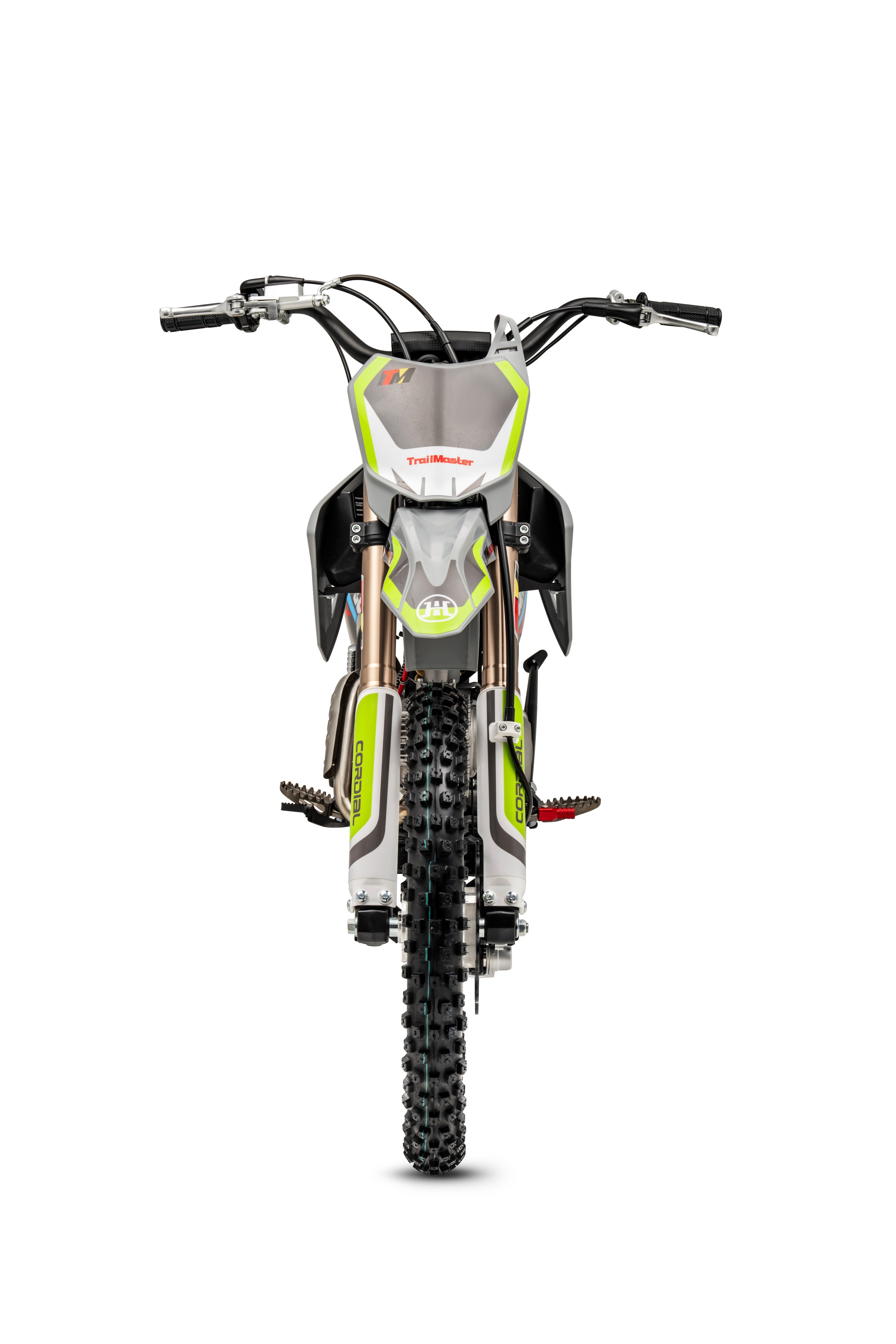

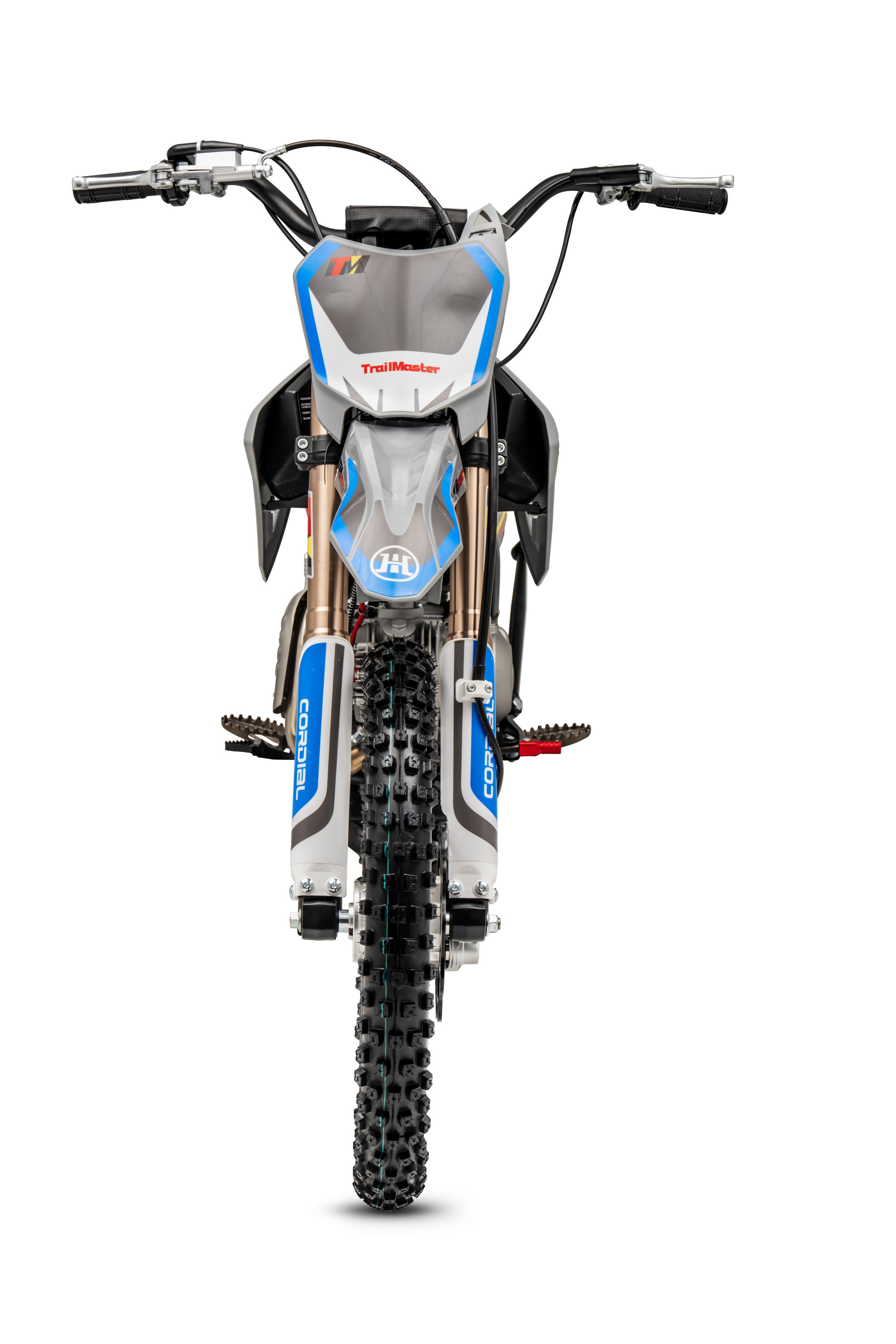

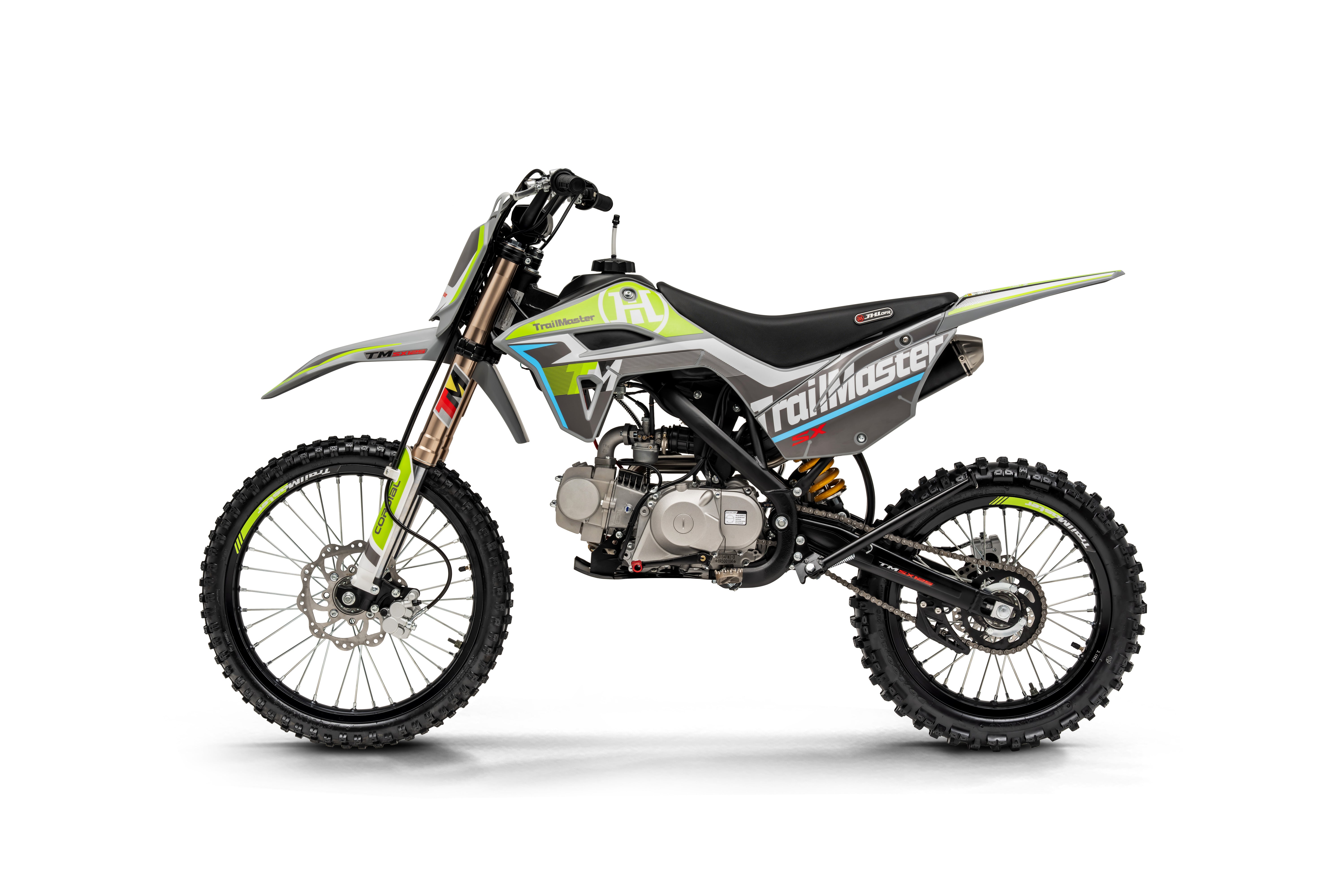

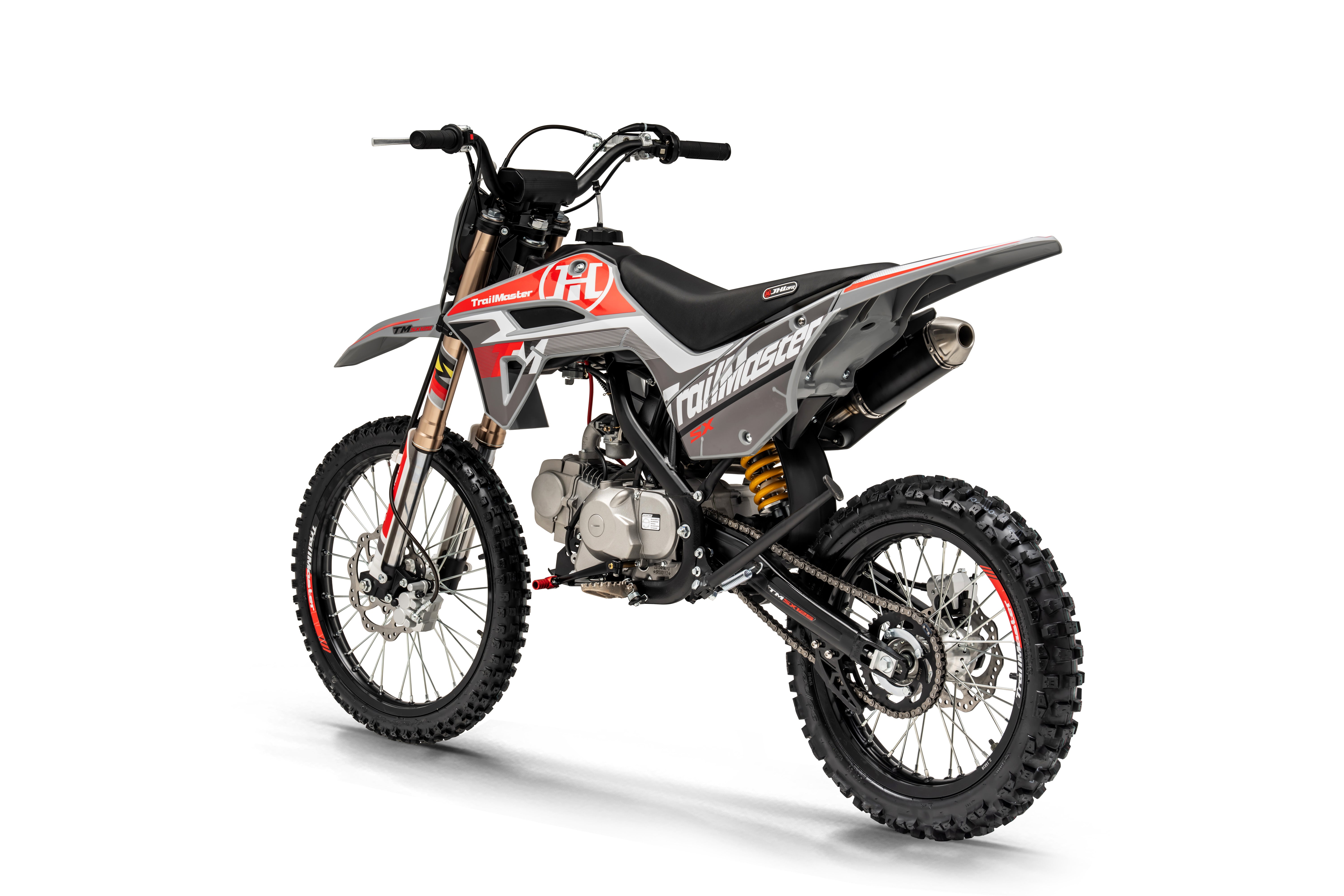

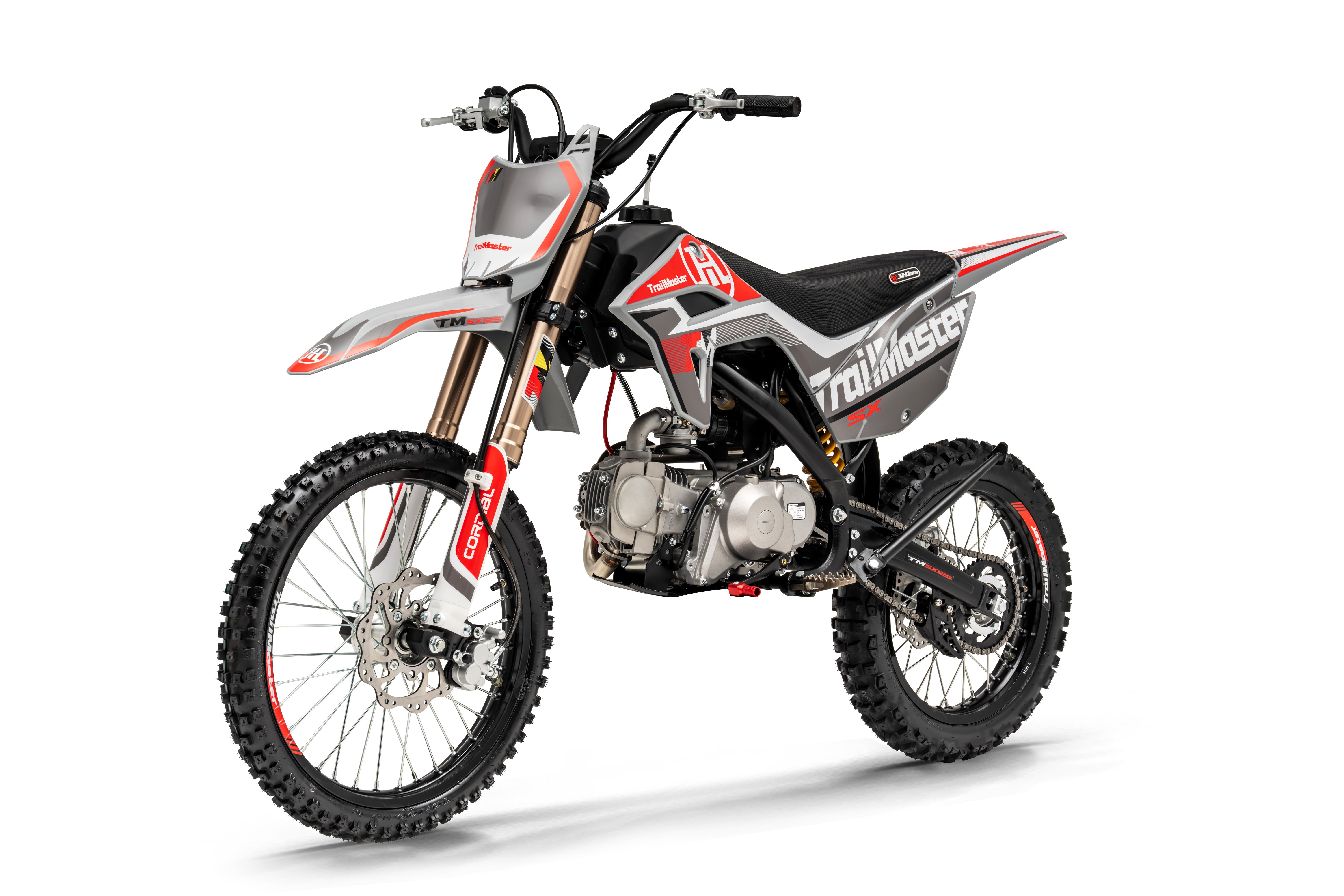

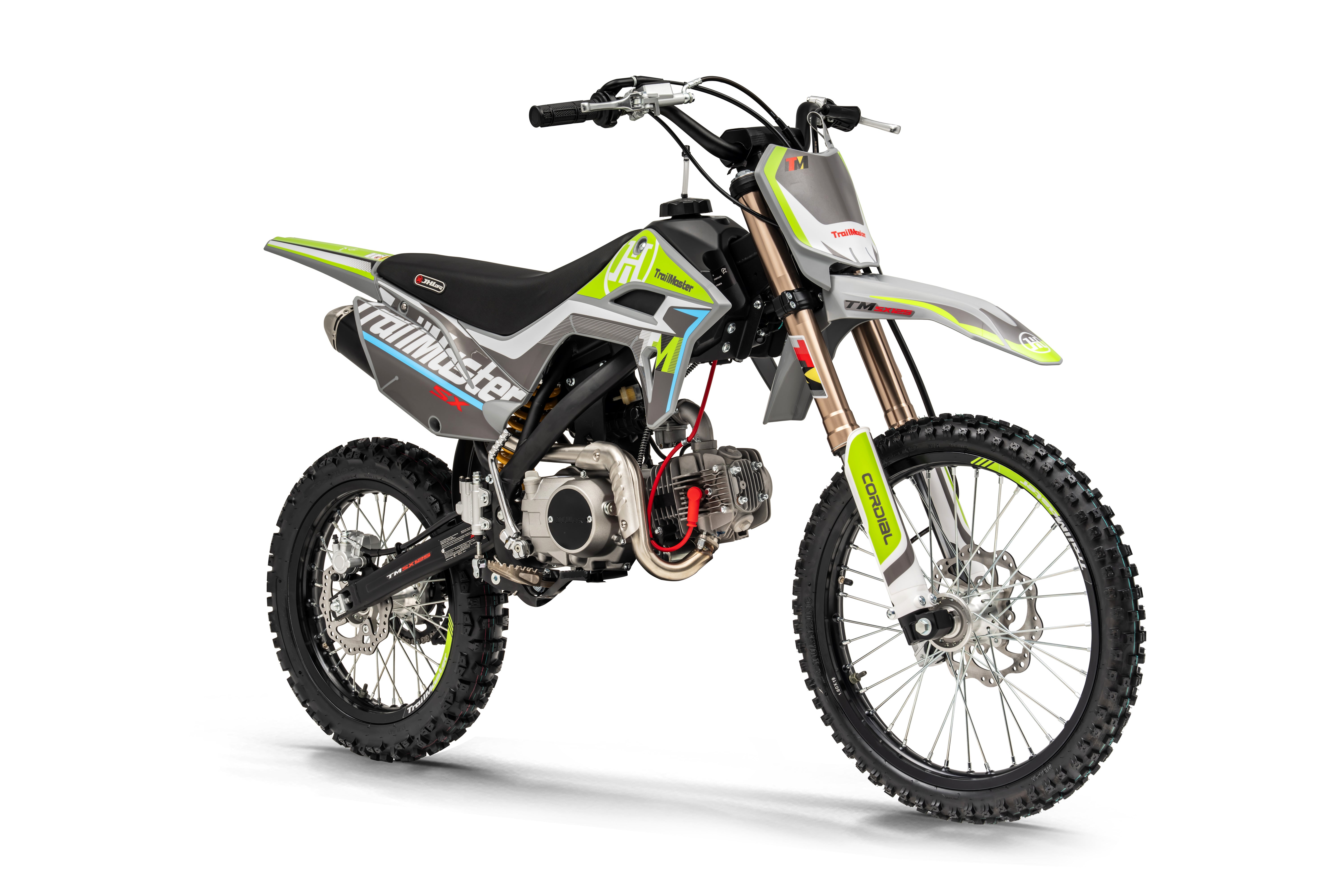

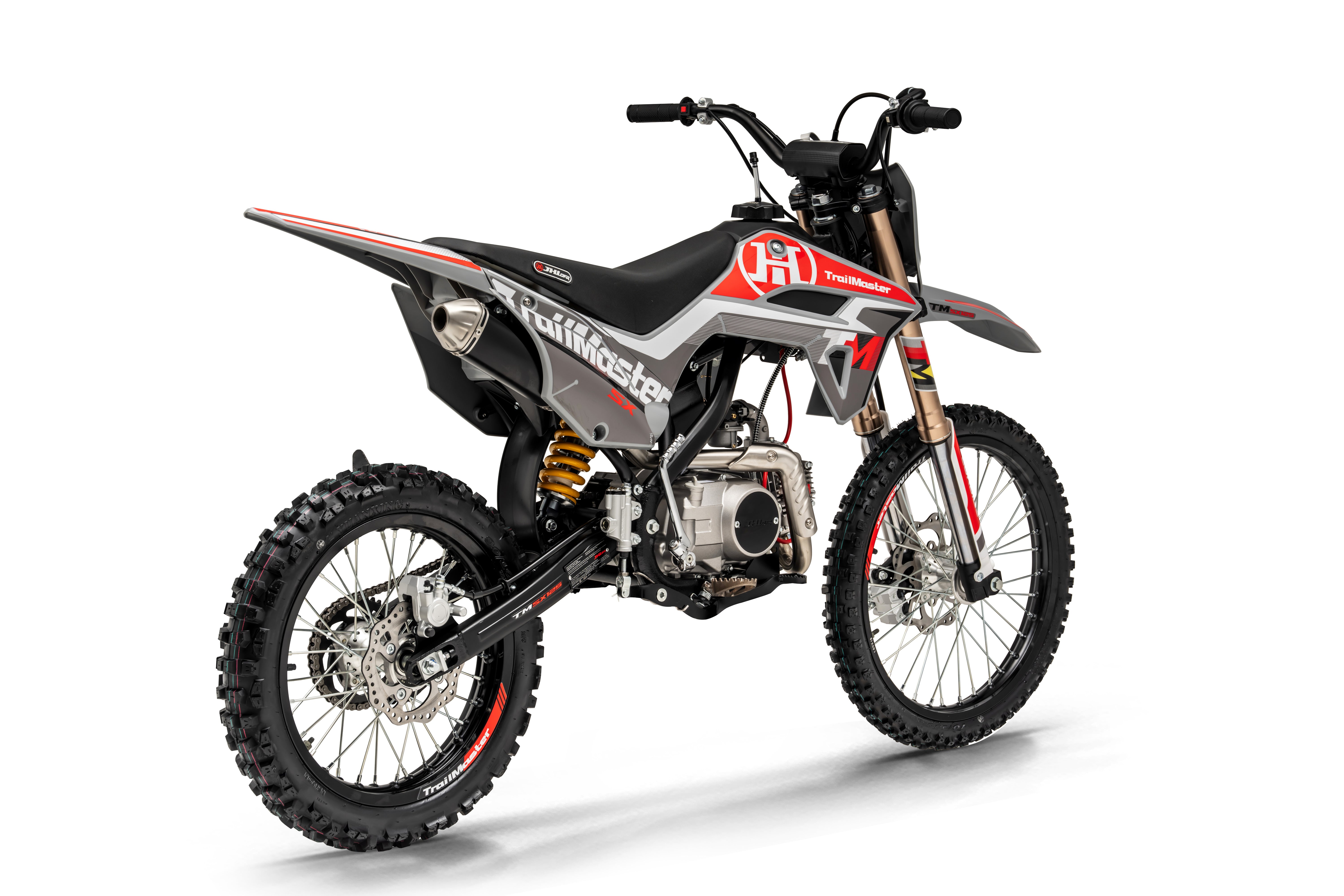

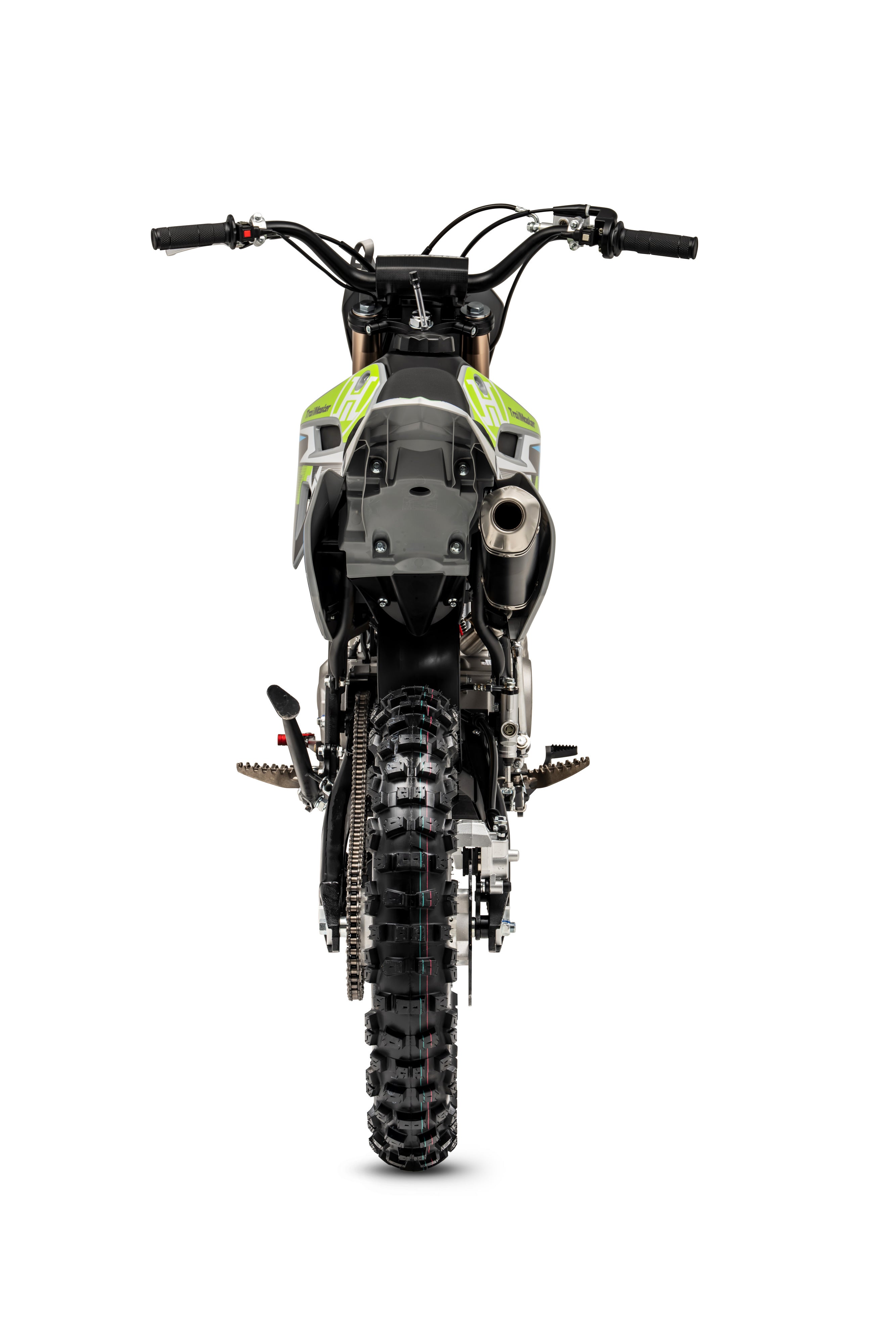

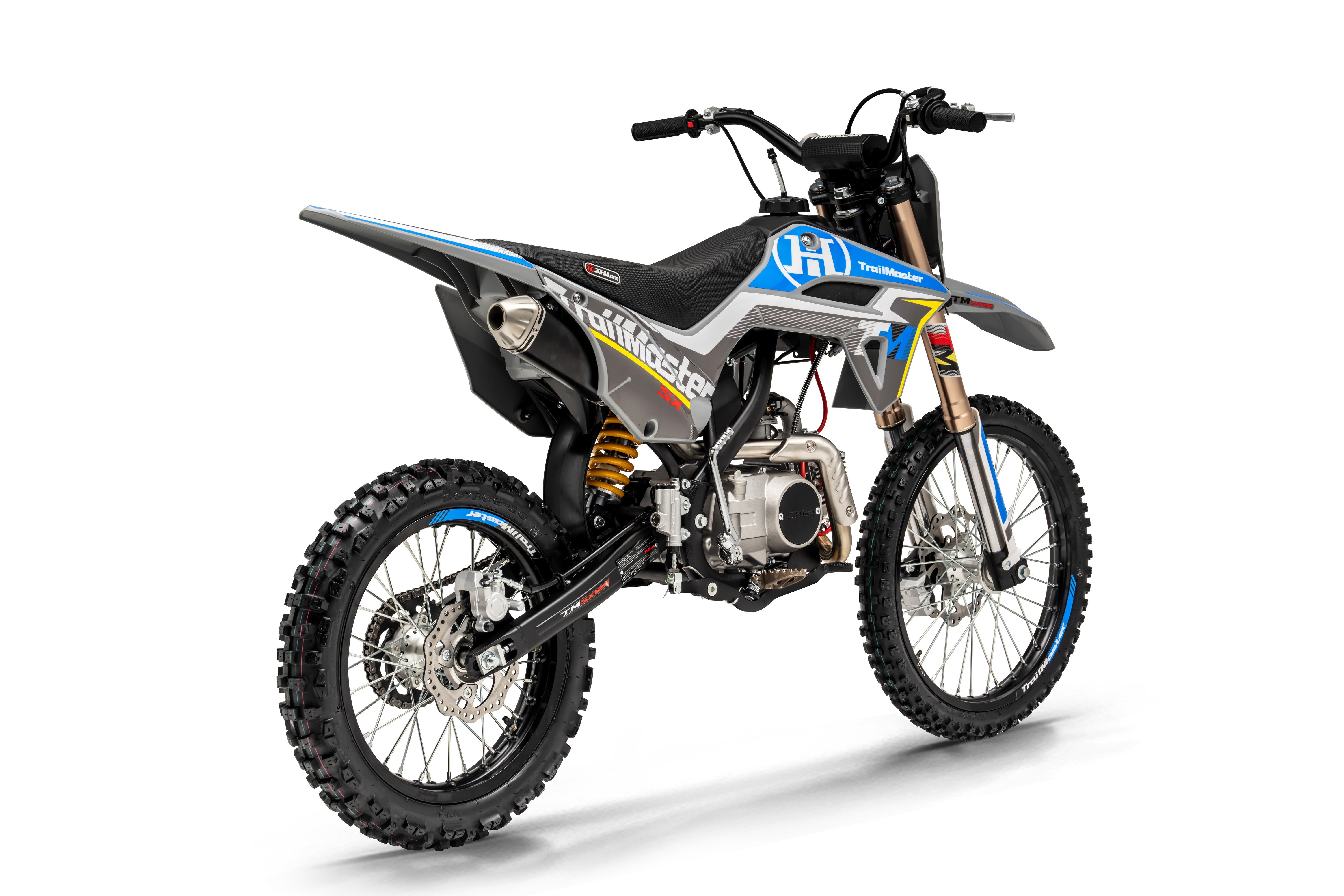

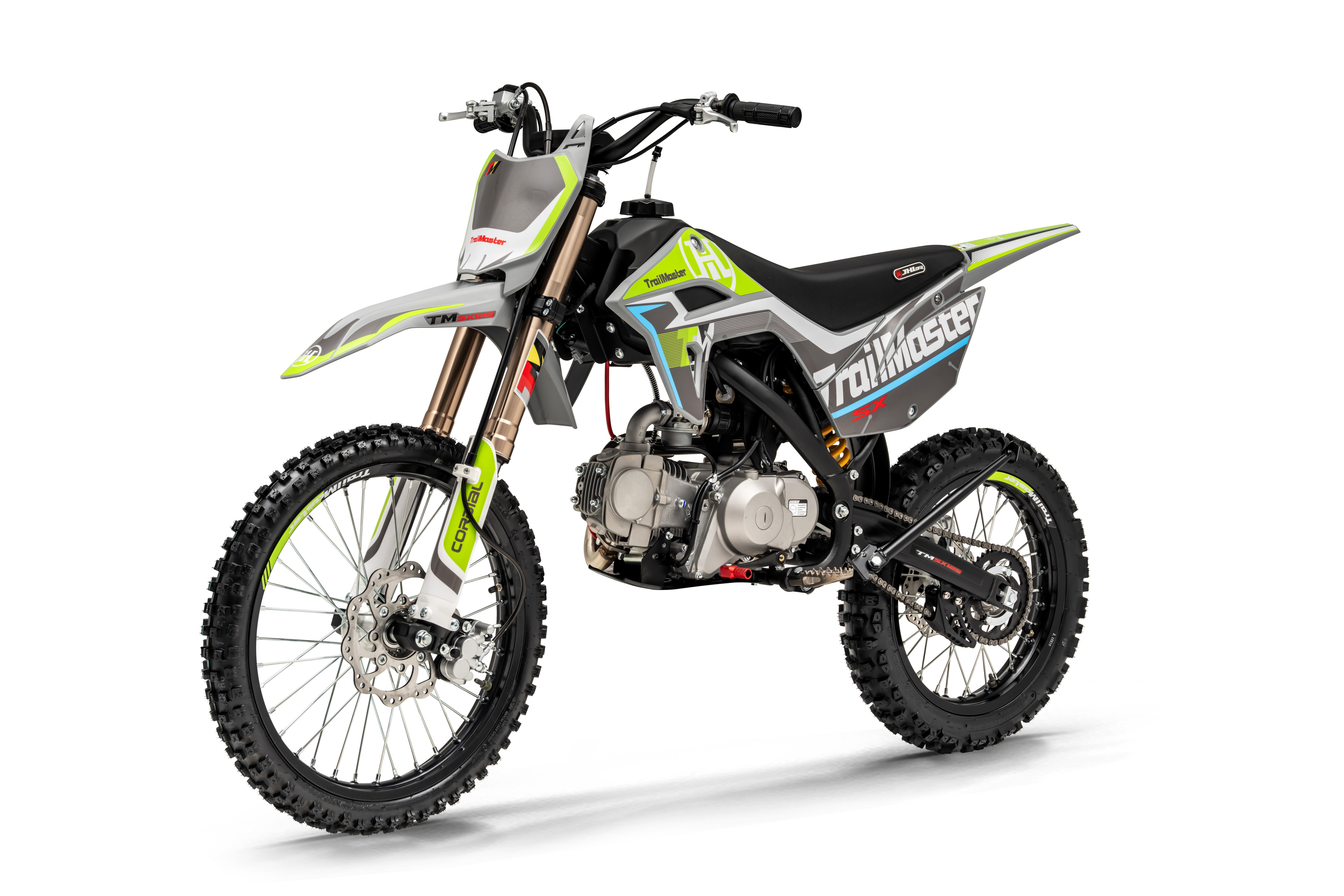

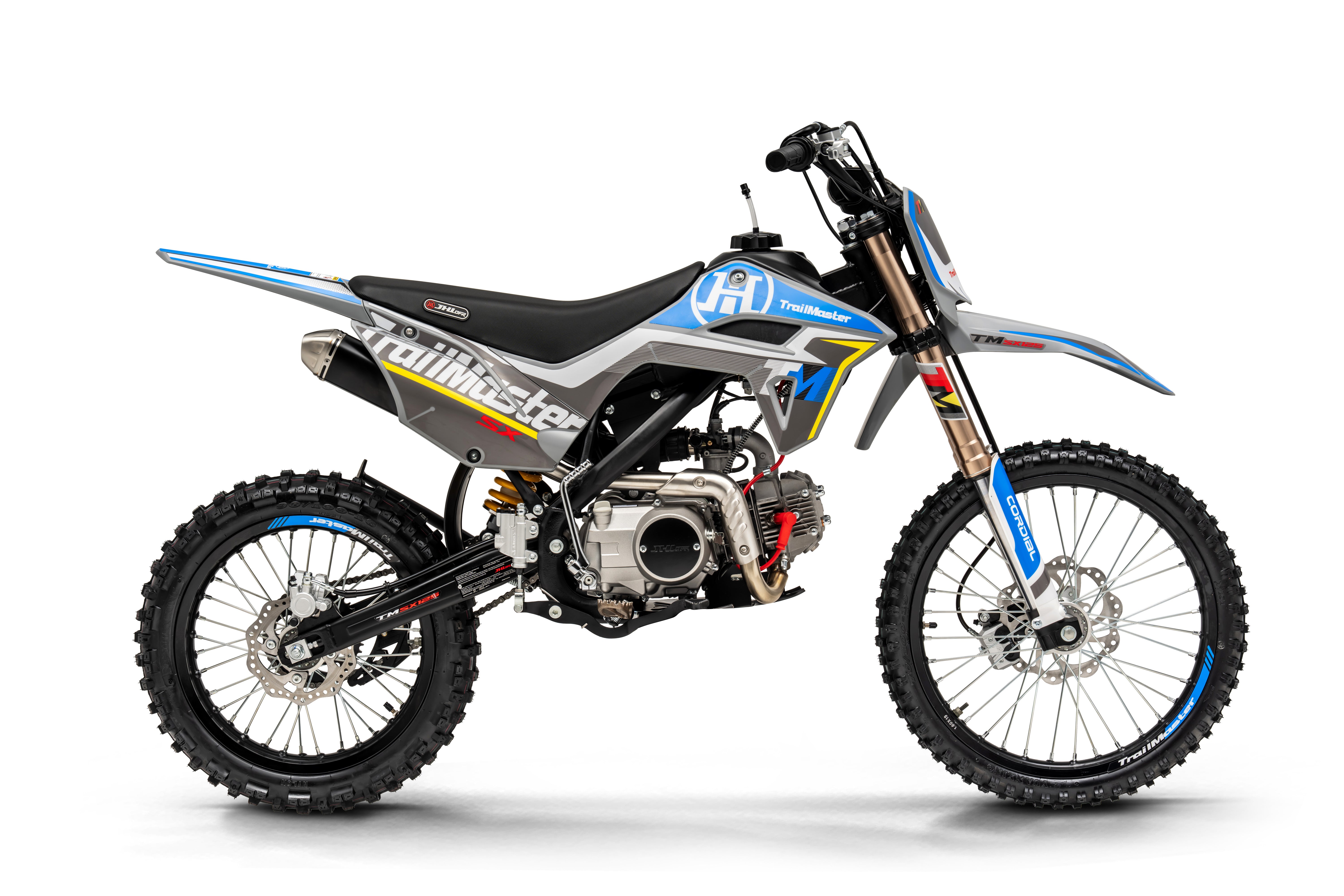

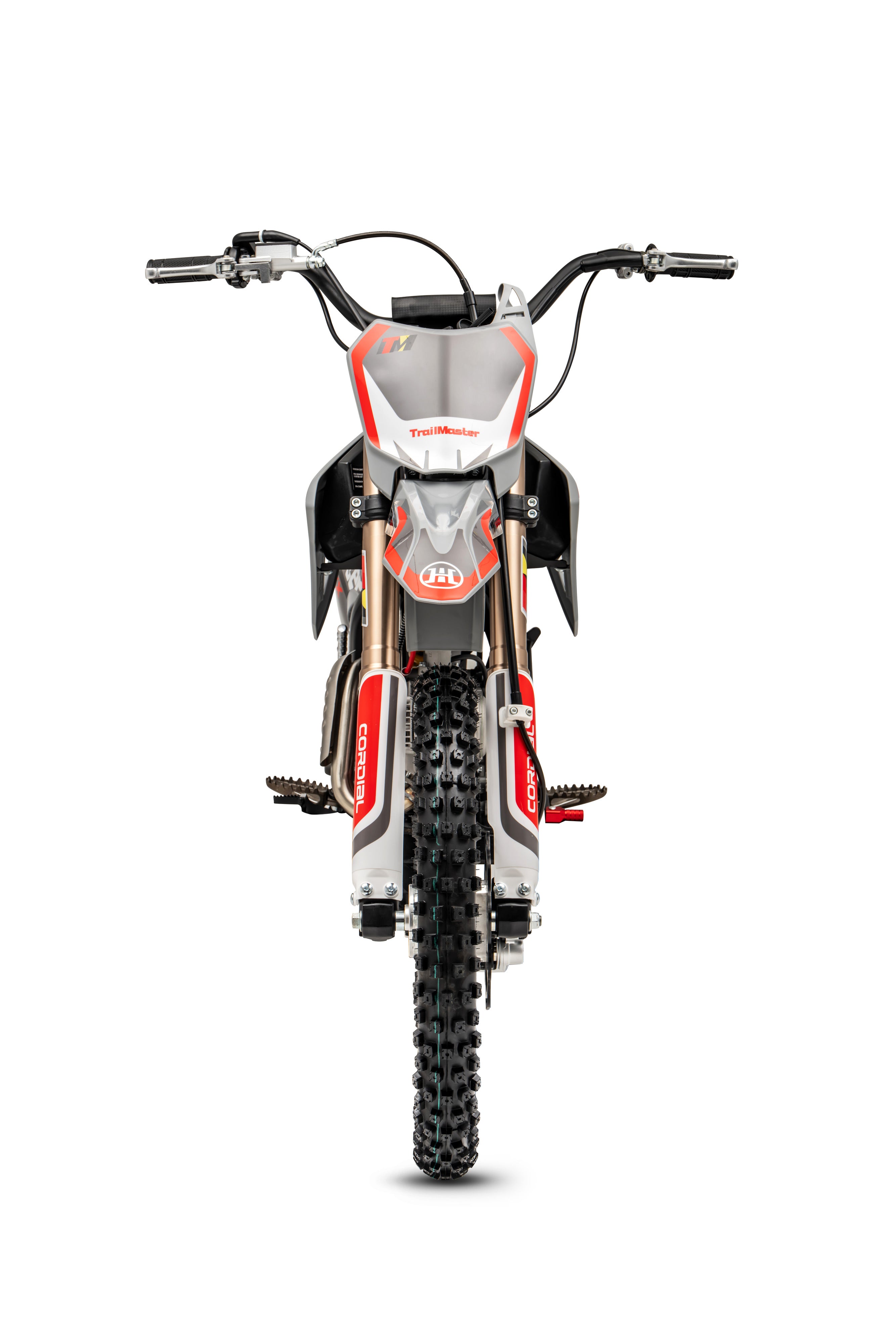

The SX125 is available in red, blue, and green colors. It features a 4-speed manual transmission with front and rear disc brakes, as well as an inverted front shock, ensuring excellent handling and durability. This bike is packed with additional premium features such as a famous Zongshen 125cc engine, high-performance inverted front shock absorber, nitrogen air gas rear shock with aluminum linkage, and performance stainless steel muffler.
The SX125 has a perfect 33” seat height, making it ideal for a wide range of riders. It is equipped with high-quality non-slip seats for added comfort and alloy rims and hubs. The large 19” front and 16” rear Yuanxin tires are perfect for tackling any terrain. This bike also features superior quality front and rear disc brakes for enhanced stopping power.
With a perfect combination of power, comfort, and performance, the TrailMaster SX125 is sure to be a hot seller!

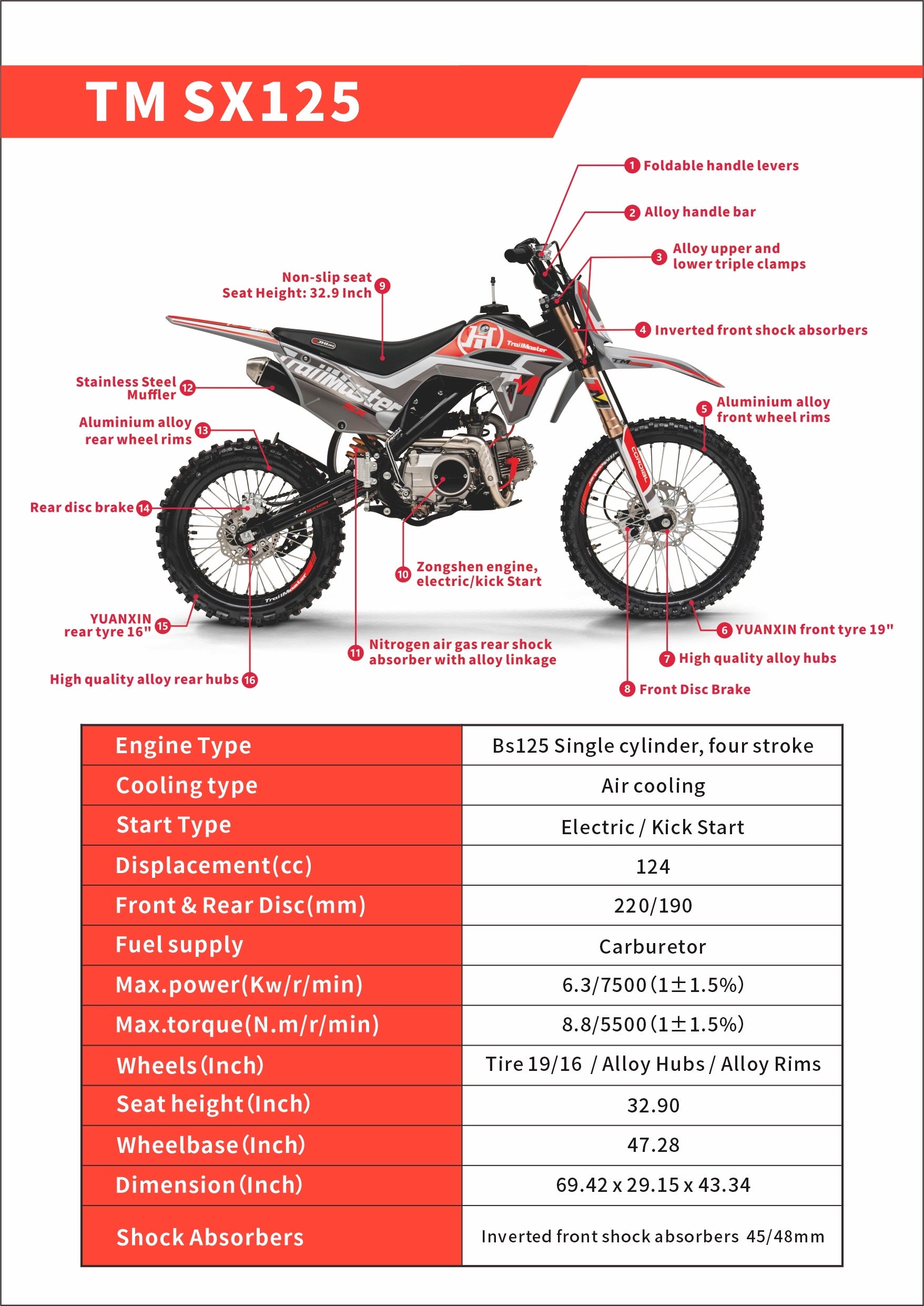

Key Features:
- With both electric and kick start
- Famous brand Zongshen 125cc engine
- Newly frame design to achieve ultimate performance
- High performance inverted front shock absorber;
- 33" seat high perfect for wide groups of riders
- Wide and high quality non-slip seat for comfortable riding
- Nitrogen air gas rear shock absorber w/aluminum linkage
- Performance stainless steel muffler
- Alloy handle bar
- Alloy upper and lower triple clamps
- Alloy foldable handle levers
- High quality reinforced alloy rims and hubs
- Large 19" front and 16"d rear Yuanxin Tires
- Superior quality front and rear disc brakes
Technical Specifications
| SX125 (JHL Pro-Series) Dirt Bike | |
|---|---|
| General Information | |
| Engine Type | BS125 Single cylinder, four stroke, air-cooling |
| Displacement | 123.67 CC |
| Max Power | 8.4 hp |
| Max Torque | 8.8/5500 (± 1.5%) |
| Compression Ratio | 9.0:1 |
| Shift Type | Four gear, non-circulating gear |
| Start Type | Electric / Kick Start |
| Ignition | CDI |
| Min. Fuel Consumption | ≤ 367g/kw.h |
| Min Turning Radius | 1900 mm |
| Lubricant Type | SF15W/40 |
| Transmission | Chain Drive |
| Size Data | |
| Overall Size (L x W x H) | 71.31 x 29.16 x 43.34 Inch |
| Wheel Base | 49.25 Inch |
| Seat Height | 32.70 Inch |
| Ground Clearance | 13.39 Inch |
| Fuel Capacity | 1.56 Gal. |
| Tires | YUANXING FT: 70/100-19, RR: 90/100-16 |
| Frame/Suspension/Brake/Wheel System | |
| Frame | High quality Steel Frame |
| Front Fork | Inverted, non-adjustable |
| Rear Shock | Alloy U&D connector, non-adjustable |
| Triple Clamps | Alloy |
| Handle | Alloy and Foldable |
| Front Brake | Disc |
| Rear Brake | Disc |
| Exhaust | Stainless |
| Packing and Loading | |
| Packing Size | 63.82 x 17.92 x 33.49 Inch |
| N.W/LBS | 189.2 lbs |
| G.W/LBS | 237.6 lbs |
